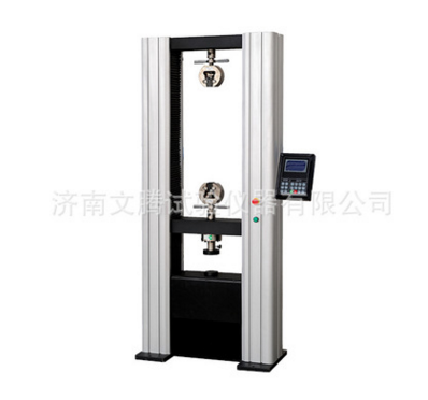

Product introduction
The machine adopts AC servo motor (or stepping motor) as power source, arc synchronous belt deceleration, ball screw loading, single chip microcomputer to measure control, large LCD screen display. The machine can be used to test and analysis of mechanical properties of various metals and non metals and composite materials, widely used in aerospace, petrochemical, machinery manufacturing, electric wire, cable, fiber, textile, plastic, rubber, ceramics, food, pharmaceutical packaging, plastic pipe, plastic doors and windows, geotextile, film, wood, paper, metal materials and manufacturing, electronic tensile testing machine according to GB, JIS, ASTM, DIN, ISO and other standards automatically calculate the maximum test force, fracture stress, yield strength, yield strength, tensile strength, compressive strength, elongation, tensile modulus, flexural modulus of elasticity test data.
Two, to meet the test standards
The electronic universal testing machine to meet the "GB/T228.1-2010 tensile test method", "GB/T 528-2009 rubber vulcanized or thermoplastic Determination of tensile stress-strain properties", "GB/T1040-2008", the determination of tensile properties of plastics "GB/T1041-2008 plastic compression test" as a test standard.
Three, product function and characteristics
1, host
1.1 host has a variety of forms to choose, the whole compact and beautiful;
1.2 the use of circular arc synchronous belt deceleration, precision ball screw loading, smooth transmission, low noise.
2, measurement and control system
2.1 single chip microcomputer to measure and control, large LCD screen display, display simple, easy to operate;
2.2 test force continuous measurement;
2.3 after the end of the test, the test results are automatically saved, if the distribution of micro printer can automatically print test results;
2.4 limit protection: when the moving beam touches the upper and lower position, the moving beam stops moving;
2.5 overload protection: when the load exceeds the maximum value of 2%-5%, automatic shutdown;
2.6 emergency stop: with emergency stop switch, cut off the power supply for emergency.
Four, the main configuration
1, high precision load sensor
2, AC servo motor or stepper motor;
3, arc synchronous belt deceleration mechanism;
4, precision ball screw;
5, liquid crystal display controller;
6, the tension and compression of each of a set of devices.
