First, the use of equipment

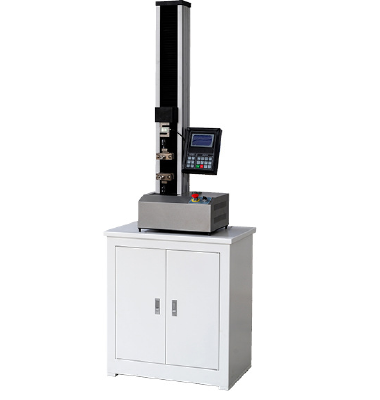

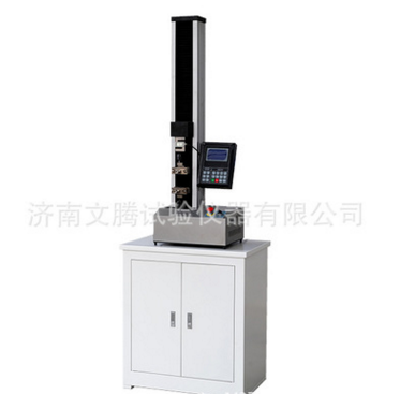

The electronic universal testing machine with domestic servo motor, high precision ball screw, high precision sensor, a new independent controller, three loop servo control system as a power source; adopts the advanced integrated technology, amplification of PCI data acquisition and control system design, test force, deformation amplification, A/D conversion process to achieve full digital adjustment. The machine can be used to test and analysis of mechanical properties of various metals and non metals and composite materials, widely used in aerospace, petrochemical, machinery manufacturing, electric wire, cable, fiber, textile, plastic, rubber, ceramics, food, pharmaceutical packaging, plastic pipe, plastic doors and windows, geotextile, film, wood, paper, metal materials and manufacturing, electronic tensile testing machine according to GB, JIS, ASTM, DIN, ISO and other standards automatically calculate the maximum test force, fracture stress, yield strength, yield strength, tensile strength, compressive strength, elongation, tensile modulus, flexural modulus of elasticity test data.
Two, according to the standard
The electronic universal testing machine meets the requirements of national standard 1040-2006 GB/T, 1041-1992 GB/T, 1042-1992 GB/T, 10802-2006 GB/T, 10807-2006 GB/T, GB/T10808-2006, and.
Three, the host configuration
1, high precision load sensor;
2, domestic AC servo motor and servo drive;
3, precision reducer;
4, precision ball screw;
5, liquid crystal display controller.
Four, product function and characteristics
1, host
1.1 the product adopts the single column structure, and the whole machine is exquisite and beautiful;
1.2 configuration of tensile, compression fixture each set;
1.3 full digital AC servo motor and servo driver, the performance is reliable, stable, with over current, over voltage and other protective devices;
1.4 the use of precision screw and precision gear transmission, smooth transmission, low noise.
2, measurement and control system
2.1 automatic clear: the main control system after receiving the test start command, the system will automatically reset;
2.2 automatic shift: according to the load size automatically switches to the appropriate range, to ensure the accuracy of the measurement;
2.3 automatic test: after the test is finished, the test process can be completed automatically;
2.4 batch test: the same specifications of the sample, a set can be automatically completed the same batch of test;
2.5 automatic printing: after the end of the test, the test results can be automatically printed;
2.6 real time display: test force and test peak can be displayed in real time;
2.7 limit protection: two kinds of limit protection function with program control and machine;
2.8 overload protection: when the load exceeds the maximum value of 2%-10%, automatic shutdown;
2.9 emergency stop: with emergency stop switch, cut off the power supply for emergency.
